准备工作

本文仅适用于同时购买了我的多个产品的用户，如GCS，GMS，或者GIS。

由于战斗系统本身最复杂，牵扯的游戏机制也更多。因此，建议的流程是将GIS或GMS整合到GCS中。

前置知识

在此之前，你应该至少了解各系统的基础用法，以及GCS的BC_DemoCombatEntity的实现方式。

背景

首先，GCS和GMS，以及GIS都属于GGF(通用游戏框架插件，我的All-In-One解决方案，但它还未发布)。

我希望我的产品能够保持相互之间的独立，模块化。因此GCS和GMS以及GIS都有自己对应的配套项目，它们都是从我当前的All-In-One中分离出来的子集。

想了解更多请看这里。

合并项目

你可以手动将各插件对应版本的最新配套项目进行手动合并，或者将项目内容同时迁移到你自己的项目。

注意

配套项目均由我自己的项目拆分而成，因此你可以通过复制粘贴自由地再合并到一起。配套项目会共享一些内容，因此合并过程中的重复文件直接进行覆盖即可。

同时要注意配套项目的DefaultGame.ini和DefaultEngine.ini中的内容（若存在），也要进行合并。

安装所需插件

所有的配套项目都共享通用游戏系统(GGS)，插件不需要合并，你只需从Fab安装好对应版本的插件即可。

整合GMS到GCS

GCS的配套项目中的Demo部分包含一个简单的运动系统，其演示了如何在GCS中引入运动系统，并包含：

BC_Demo_MovementManager：位于/GenericDemo/GCS/Blueprints/MovementManager，是一个简单的运动管理组件。
若干动画蓝图：位于/GenericDemo/GCS/Animations/下，是几个轻量的动画蓝图，可以说是GMS的极端简化版本。

你可以将其替换为成别的实现，如：使用ALS/GASP或者我的GMS去替换GCS中的运动系统。

这里会介绍如何将GMS整合进GCS。

完成运动系统的基础设置

替换运动系统

在将GMS整合到GCS之前，你至少应该已经熟悉和了解GMS本身的使用。你可以参考运动系统的配置，在GCS中完成运动系统的基础组件设置。

关键点如下：

将GCS角色中的BC_Demo_MovementManager替换为GMS的运动系统组件，GMS的运动系统组件提供与BC_Demo_MovementManager相似的API/事件。
将GCS角色中的SkeletalMesh组件的动画蓝图从ABP_CombatCharacter替换为GMS提供的ABPT_GMS_Main。
参考GMS中的ABP_Mannequin_Ext在GMS中的用法，在GCS角色的Beginplay中，将其Link到SkeletalMesh组件的主动画实例中，ABP_Mannequin_Ext是设置角色Montage布局的动画层，它与GCS的Demo提供的ABP_CombatCharacter_Ext提供相同功能。

Loading Blueprint

Initializing BlueprintUE renderer...

更替运动API

GCS的战斗实体接口中，有几个运动相关的API与GMS的API兼容，因此你可以继承自BC_GCS_CombatEntity或者修改BC_GCS_DemoCombatEntity，并按照指示替换API调用。

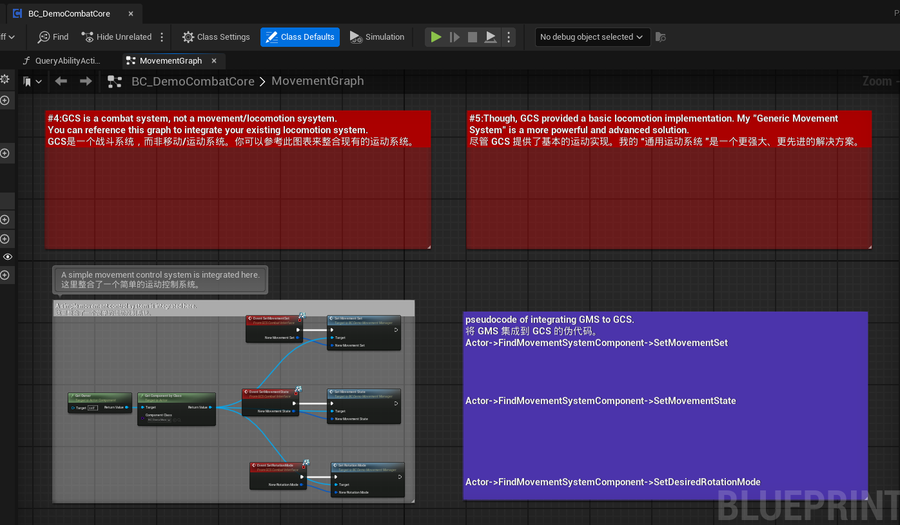

GCS集成GMS.API案例 — DemoCombatEntity中的案例代码。

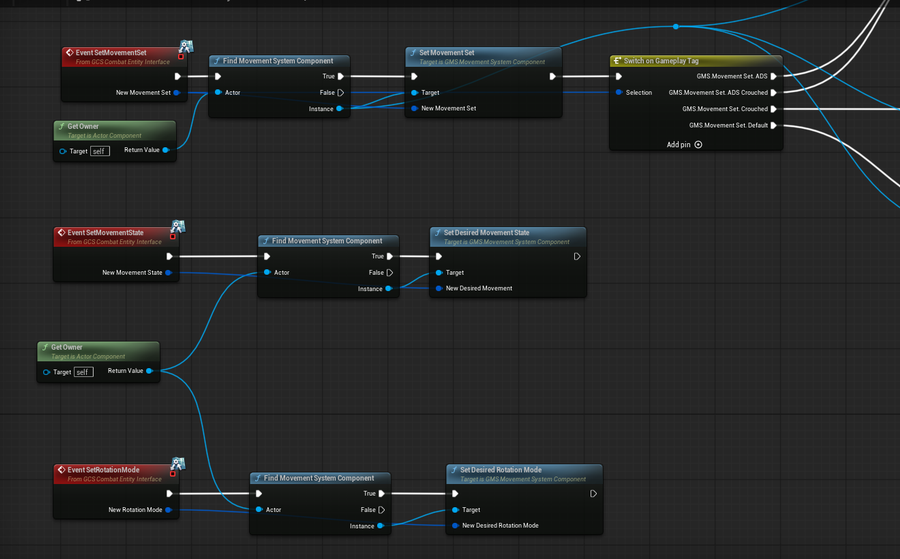

GCS集成GMS.运动api — SetMovementSet/SetMovementState/SetRotationMode由GMS实现。

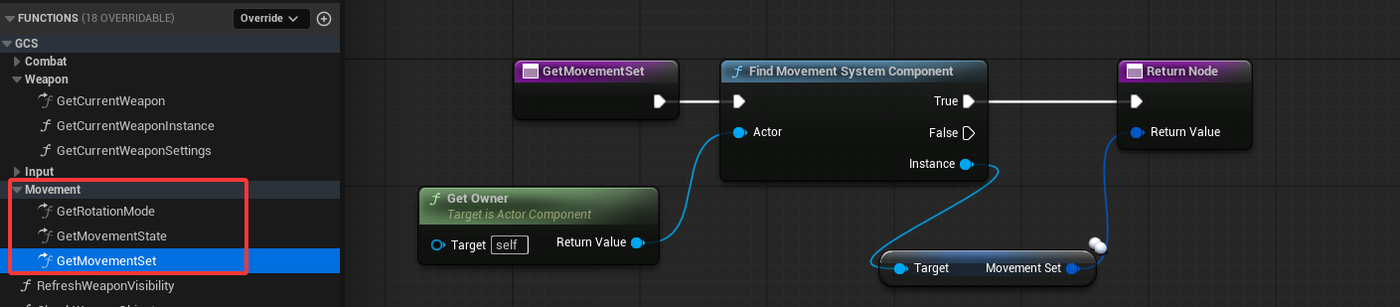

集成指南.GMSAPI.Getter — GetRotationMode/GetMovementState/GetMovementSet由GMS实现。

武器与运动定义整合

在GCS_Demo中，DemoWeapon是通过WeaponAnimLayerSelections 来配置了不同的动画层，并通过在合适的时候调用RefreshWeaponAnimLayer和UnlinkWeaponAnimLayer来实现针对角色的状态，根据当前武器切换不同的动画层（不同的动画姿态）。

若采用GMS，你无需再手动调用武器上的动画层的刷新，而是在你的武器类中新增运动定义变量，然后在武器激活/取消激活的时候，为GMS运动系统组件设置运动定义。

当运动API调用时，GMS运动系统组件会自动刷新对应的控制/动画层逻辑。

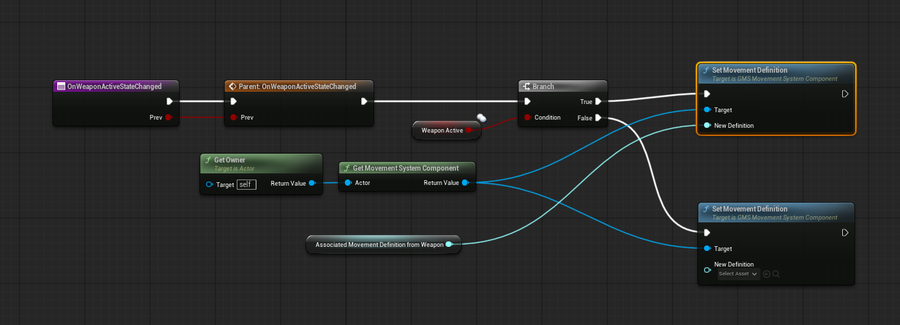

GCS集成GMS.切换武器定义 — 取决于你的游戏设计，你可能需要更复杂的逻辑来决定每个武器在激活时，为运动系统设置什么样的运动定义（比如根据角色的性别，采用不同的运动定义）。

总结

理想情况下，当你在GCS中切换武器时，会切换GMS组件上的运动定义。当你通过CombatEntityInterface调用运动相关API时，会通过GMS组件来执行具体的运动控制/动画替换。

整合GIS到GCS

jing'gao

此部分内容仍在编写中...

GCS的配套项目中的包含一个简单的武器管理组件，它演示了如何在GCS中引入装备管理系统。

你可以使用别的库存/装备系统去替换GCS中的武器管理功能等。

而这里会介绍如何使用GIS来管理GCS中的武器。

关键点

GIS是数据驱动的库存系统，若要用GIS来代替GCS中的装备管理功能，你需要从武器接口层去实现你的武器，而不是使用GCS_WeaponActor。

数据层

定义武器相关的道具Fragment，这部分是将GCS武器中的一些静态配置，以道具Fragment的形式制作。

cpp

1/**
2 * The primary weapon setting.
3 */
4UCLASS(Blueprintable, BlueprintType, Const, meta=(DisplayName="Weapon Settings"))
5class UGGF_ItemFragment_WeaponSettings : public UGIS_ItemFragment
6{
7	GENERATED_BODY()
8
9public:
10	/** Associated montages for abilities. */
11	UPROPERTY(BlueprintReadWrite, EditAnywhere, Category="Weapon")
12	TSoftObjectPtr<UGCS_AbilityActionSetSettings> AbilityActionsLibrary;
13
14	/** Please add a variable description */
15	UPROPERTY(BlueprintReadWrite, EditAnywhere, Category="Weapon")
16	TSoftObjectPtr<UGMS_MovementDefinition> MovementDefinition;
17
18	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category="Weapon")
19	TObjectPtr<UStaticMesh> StaticMesh;
20
21	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category="Weapon")
22	TObjectPtr<USkeletalMesh> SkeletalMesh;
23
24	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category="Weapon")
25	TSubclassOf<UAnimInstance> AnimInstanceClass;
26
27	/**
28	 * Socket to attach to(will try one by one) while active.
29	 * 当激活时，会附加到的插槽（一个个尝试）。
30	 */
31	UPROPERTY(BlueprintReadWrite, EditAnywhere, Category="Weapon")
32	TArray<FName> ActiveSockets{};
33
34	/**
35	 * Socket to attach to(will try one by one) while not active.
36	 * 当没激活时，会附加到的插槽（一个个尝试）。
37	 */
38	UPROPERTY(BlueprintReadWrite, EditAnywhere, Category="Weapon")
39	TArray<FName> InactiveSockets{};
40
41	UPROPERTY(BlueprintReadWrite, EditAnywhere, Category="Weapon", meta=(RequiredAssetDataTags = "RowStructure=/Script/GenericCombatSystem.GCS_ComboDefinition"))
42	TObjectPtr<const UDataTable> ComboDefinitionTable;
43
44	/**
45	 * Weapon trace definitions.
46	 * 武器的检测定义
47	 */
48	UPROPERTY(EditAnywhere, BlueprintReadOnly, Category="Weapon", meta=(TitleProperty="TraceTag"))
49	TArray<FGCS_TraceDefinition> TraceDefinitions;
50
51#if WITH_EDITOR
52	virtual bool FragmentDataValidation_Implementation(FText& OutMessage) const override;
53#endif
54};
55
56
57/**
58 * The offhand weapon setting. The second equipment actor will be treated as OffhandWeapon.
59 */
60UCLASS(Blueprintable, BlueprintType, Const, meta=(DisplayName="Offhand Weapon Settings"))
61class UGGF_ItemFragment_OffHandWeaponSettings : public UGGF_ItemFragment_WeaponSettings
62{
63	GENERATED_BODY()
64};

逻辑层

装备实例

首先抽象出装备实例，负责所有装备的共通逻辑。

cpp

1// Copyright 2025 https://yuewu.dev/en  All Rights Reserved.
2
3#pragma once
4
5#include "CoreMinimal.h"
6#include "GIS_EquipmentInstance.h"
7#include "GGF_EquipmentInstance.generated.h"
8
9
10struct FGGA_AbilitySet_GrantedHandles;
11
12/** Base class for Equipment Instance, contains shared feature of ""Equipment */
13UCLASS(Blueprintable, BlueprintType)
14class GENERICGAMEFRAMEWORK_API UGGF_EquipmentInstance : public UGIS_EquipmentInstance
15{
16	GENERATED_BODY()
17
18protected:
19	virtual void OnEquipmentBeginPlay_Implementation() override;
20	virtual void OnEquipmentEndPlay_Implementation() override;
21	virtual void OnActiveStateChanged_Implementation(bool bNewActiveState) override;
22
23#pragma region AbilitySets
24	UFUNCTION(BlueprintCallable, Category="GGF|EquipmentInstance", meta=(BlueprintProtected))
25	virtual void GrantAbilitySets();
26
27	UFUNCTION(BlueprintCallable, Category="GGF|EquipmentInstance", meta=(BlueprintProtected))
28	virtual void GrantActiveAbilitySets();
29
30	UFUNCTION(BlueprintCallable, Category="GGF|EquipmentInstance", meta=(BlueprintProtected))
31	virtual void TakeAwayGrantedAbilitySets();
32
33	UFUNCTION(BlueprintCallable, Category="GGF|EquipmentInstance", meta=(BlueprintProtected))
34	virtual void TakeAwayGrantedActiveAbilitySets();
35
36	UFUNCTION(BlueprintCallable, Category="GGF|EquipmentInstance", meta=(BlueprintProtected))
37	virtual int32 GetEquipmentLevel() const;
38
39protected:
40	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Transient, Category="EquipmentInstance")
41	TArray<FGGA_AbilitySet_GrantedHandles> GrantedAbilitySetHandles;
42
43	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Transient, Category="EquipmentInstance")
44	TArray<FGGA_AbilitySet_GrantedHandles> GrantedActiveAbilitySetHandles;
45
46#pragma endregion
47};
48

cpp

1// Copyright 2025 https://yuewu.dev/en  All Rights Reserved.
2
3
4#include "Inventory/GGF_EquipmentInstance.h"
5
6#include "AbilitySystemBlueprintLibrary.h"
7#include "GIS_ItemInstance.h"
8#include "Inventory/GGF_ItemFragments.h"
9#include "Utilities/GGA_AbilitySystemFunctionLibrary.h"
10
11void UGGF_EquipmentInstance::OnEquipmentBeginPlay_Implementation()
12{
13	Super::OnEquipmentBeginPlay_Implementation();
14}
15
16void UGGF_EquipmentInstance::OnEquipmentEndPlay_Implementation()
17{
18	Super::OnEquipmentEndPlay_Implementation();
19}
20
21void UGGF_EquipmentInstance::OnActiveStateChanged_Implementation(bool bNewActiveState)
22{
23	Super::OnActiveStateChanged_Implementation(bNewActiveState);
24}
25
26void UGGF_EquipmentInstance::GrantAbilitySets()
27{
28	if (OwningPawn && OwningPawn->HasAuthority() && SourceItem)
29	{
30		if (auto Fragment = SourceItem->FindFragmentByClass<UGGF_ItemFragment_AbilitySets>())
31		{
32			if (auto ASC = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(OwningPawn))
33			{
34				GrantedAbilitySetHandles = UGGA_AbilitySet::GiveAbilitySetsToAbilitySystem(Fragment->AbilitySetsToGrant, ASC, this);
35			}
36		}
37	}
38}
39
40void UGGF_EquipmentInstance::GrantActiveAbilitySets()
41{
42	if (OwningPawn && OwningPawn->HasAuthority() && SourceItem)
43	{
44		if (auto Fragment = SourceItem->FindFragmentByClass<UGGF_ItemFragment_AbilitySets>())
45		{
46			if (auto ASC = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(OwningPawn))
47			{
48				GrantedActiveAbilitySetHandles = UGGA_AbilitySet::GiveAbilitySetsToAbilitySystem(Fragment->ActiveAbilitySetsToGrant, ASC, this, GetEquipmentLevel());
49			}
50		}
51	}
52}
53
54void UGGF_EquipmentInstance::TakeAwayGrantedAbilitySets()
55{
56	if (OwningPawn && OwningPawn->HasAuthority())
57	{
58		if (auto ASC = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(OwningPawn))
59		{
60			UGGA_AbilitySet::TakeAbilitySetsFromAbilitySystem(GrantedAbilitySetHandles, ASC);
61			GrantedAbilitySetHandles.Reset();
62		}
63	}
64}
65
66void UGGF_EquipmentInstance::TakeAwayGrantedActiveAbilitySets()
67{
68	if (OwningPawn && OwningPawn->HasAuthority())
69	{
70		if (auto ASC = UAbilitySystemBlueprintLibrary::GetAbilitySystemComponent(OwningPawn))
71		{
72			for (auto& Handle : GrantedActiveAbilitySetHandles)
73			{
74				UGGA_AbilitySet::TakeAbilitySetFromAbilitySystem(Handle, ASC);
75			}
76			GrantedActiveAbilitySetHandles.Reset();
77		}
78	}
79}
80
81int32 UGGF_EquipmentInstance::GetEquipmentLevel() const
82{
83	return 1;
84}
85

武器实例

然后基于装备实例，实现武器实例，负责所有武器相关的逻辑。武器实例通过武器接口将GCS的武器功能桥接在一起。

cpp

1// Copyright 2025 https://yuewu.dev/en  All Rights Reserved.
2
3#pragma once
4
5#include "CoreMinimal.h"
6#include "GGF_EquipmentInstance.h"
7#include "Collision/GCS_TraceDelegates.h"
8#include "Weapon/GCS_WeaponInterface.h"
9#include "GGF_WeaponInstance.generated.h"
10
11class UGGF_ItemFragment_WeaponSettings;
12
13DECLARE_DYNAMIC_MULTICAST_DELEGATE_OneParam(FGGF_OnWeaponTrailStateChangedSignature, bool, bEnable);
14
15/**
16 * An equipment instance bridge to GCS's weapon interface.
17 */
18UCLASS()
19class GENERICGAMEFRAMEWORK_API UGGF_WeaponInstance : public UGGF_EquipmentInstance, public IGCS_WeaponInterface
20{
21	GENERATED_BODY()
22
23public:
24	// Begin Weapon Interface
25	virtual APawn* GetWeaponOwner_Implementation() const override final;
26	virtual const FGameplayTagContainer GetWeaponTags_Implementation() const override;
27	virtual void SetWeaponActive_Implementation(bool bNewActive) override final;
28	virtual bool IsWeaponActive_Implementation() const override final;
29	virtual void ToggleTrail_Implementation(bool bEnable) override;
30	virtual UPrimitiveComponent* GetPrimitiveComponent_Implementation() const override;
31	// End WeaponInterface
32	// Begin Equipment Interface
33	virtual void OnEquipmentBeginPlay_Implementation() override;
34	virtual void OnEquipmentEndPlay_Implementation() override;
35	// End Equipment Interface
36
37	UPROPERTY(BlueprintAssignable, Category="Events")
38	FGCS_OnTraceHitSignature OnTraceHitEvent;
39
40	UPROPERTY(BlueprintAssignable, Category="Events")
41	FGCS_OnTraceStateChangedSignature OnTraceStateChangedEvent;
42
43	UPROPERTY(BlueprintAssignable, Category="Events")
44	FGGF_OnWeaponTrailStateChangedSignature OnTrailStateChangedEvent;
45
46protected:
47	virtual void OnActiveStateChanged_Implementation(bool bNewActiveState) override;
48
49#pragma region Settings
50
51public:
52	/**
53	 * Gets the default native weapon setting.
54	 * @return Setting fragment.
55	 */
56	UFUNCTION(BlueprintCallable, BlueprintPure, Category="GGF|EquipmentInstance")
57	const UGGF_ItemFragment_WeaponSettings* GetWeaponSettings() const;
58
59	UFUNCTION(BlueprintCallable, BlueprintPure, Category="GGF|EquipmentInstance")
60	const UGGF_ItemFragment_WeaponSettings* GetOffhandWeaponSettings() const;
61
62#pragma endregion
63
64
65#pragma region Movements
66
67protected:
68	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GGF|EquipmentInstance", meta=(BlueprintProtected))
69	void RefreshMovementSet();
70	virtual void RefreshMovementSet_Implementation();
71
72#pragma endregion
73};
74

cpp

1// Copyright 2025 https://yuewu.dev/en  All Rights Reserved.
2
3
4#include "Inventory/GGF_WeaponInstance.h"
5#include "GIS_EquipmentActorInterface.h"
6#include "GIS_ItemInstance.h"
7#include "GIS_LogChannels.h"
8#include "GMS_MovementSystemComponent.h"
9#include "Inventory/GGF_ItemFragments.h"
10
11
12APawn* UGGF_WeaponInstance::GetWeaponOwner_Implementation() const
13{
14	return OwningPawn;
15}
16
17const FGameplayTagContainer UGGF_WeaponInstance::GetWeaponTags_Implementation() const
18{
19	return IsValid(SourceItem) ? SourceItem->GetItemTags() : FGameplayTagContainer::EmptyContainer;
20}
21
22void UGGF_WeaponInstance::SetWeaponActive_Implementation(bool bNewActive)
23{
24	bIsActive = true;
25}
26
27bool UGGF_WeaponInstance::IsWeaponActive_Implementation() const
28{
29	return bIsActive;
30}
31
32//UPrimitiveComponent* UGGF_WeaponInstance::GetPrimitiveComponent_Implementation() const
33//{
34//	checkf(0, TEXT("%S %s Not implemented, Should implemented by sub class!"), __FUNCTION__, *GetClass()->GetName());
35//	return nullptr;
36//}
37
38void UGGF_WeaponInstance::ToggleTrail_Implementation(bool bEnable)
39{
40	OnTrailStateChangedEvent.Broadcast(bEnable);
41}
42
43UPrimitiveComponent* UGGF_WeaponInstance::GetPrimitiveComponent_Implementation() const
44{
45	for (int32 i = 0; i < EquipmentActors.Num(); i++)
46	{
47		if (IsValid(EquipmentActors[i]))
48		{
49			if (UPrimitiveComponent* WeaponPrimitive = IGIS_EquipmentActorInterface::Execute_GetPrimitiveComponent(EquipmentActors[i]))
50			{
51				return WeaponPrimitive;
52			}
53		}
54	}
55	GIS_OWNED_CLOG(OwningPawn, Warning, "Weapon(%ss) failed to get primitive component on EquipmentActors!", *GetNameSafe(this));
56	return nullptr;
57}
58
59void UGGF_WeaponInstance::OnEquipmentBeginPlay_Implementation()
60{
61	Super::OnEquipmentBeginPlay_Implementation();
62}
63
64void UGGF_WeaponInstance::OnEquipmentEndPlay_Implementation()
65{
66	Super::OnEquipmentEndPlay_Implementation();
67}
68
69void UGGF_WeaponInstance::OnActiveStateChanged_Implementation(bool bNewActiveState)
70{
71	Super::OnActiveStateChanged_Implementation(bNewActiveState);
72}
73
74const UGGF_ItemFragment_WeaponSettings* UGGF_WeaponInstance::GetWeaponSettings() const
75{
76	return SourceItem->FindFragmentByClass<UGGF_ItemFragment_WeaponSettings>();
77}
78
79const UGGF_ItemFragment_WeaponSettings* UGGF_WeaponInstance::GetOffhandWeaponSettings() const
80{
81	return SourceItem->FindFragmentByClass<UGGF_ItemFragment_OffHandWeaponSettings>();
82}
83
84void UGGF_WeaponInstance::RefreshMovementSet_Implementation()
85{
86	if (OwningPawn && OwningPawn->HasAuthority())
87	{
88		if (bIsActive)
89		{
90			if (auto MSC = UGMS_MovementSystemComponent::GetMovementSystemComponent(OwningPawn))
91			{
92				MSC->SetMovementDefinition(GetWeaponSettings()->MovementDefinition);
93			}
94		}
95	}
96}
97

物理层

GIS中，一个装备可以有多个物理呈现，这里仅讨论武器Actor本身。

cpp

1// Copyright 2025 https://yuewu.dev/en  All Rights Reserved.
2
3#pragma once
4
5#include "CoreMinimal.h"
6#include "GIS_EquipmentActorInterface.h"
7#include "Collision/GCS_TraceStructLibrary.h"
8#include "GameFramework/Actor.h"
9#include "GGF_Weapon.generated.h"
10
11class UGGF_WeaponInstance;
12class UGIS_EquipmentInstance;
13class UGIS_EquipmentSystemComponent;
14class UGGF_ItemFragment_WeaponSettings;
15
16/**
17 * Physical representation for a weapon instance.
18 * 武器实例的物理呈现。
19 */
20UCLASS(BlueprintType, Blueprintable, Abstract, ClassGroup=(GGF))
21class GENERICGAMEFRAMEWORK_API AGGF_Weapon : public AActor, public IGIS_EquipmentActorInterface
22{
23	GENERATED_BODY()
24
25public:
26	/**
27	 * Default constructor.
28	 * 默认构造函数。
29	 */
30	AGGF_Weapon();
31
32	// Begin EquipmentActorInterface
33	virtual UGIS_EquipmentInstance* GetSourceEquipment_Implementation() const override;
34	virtual UPrimitiveComponent* GetPrimitiveComponent_Implementation() const override;
35	// End EquipmentActorInterface
36
37protected:
38	// Begin EquipmentActorInterface
39	virtual void ReceiveSourceEquipment_Implementation(UGIS_EquipmentInstance* NewEquipmentInstance, int32 Idx) override;
40	virtual void ReceiveEquipmentBeginPlay_Implementation() override;
41	virtual void ReceiveEquipmentEndPlay_Implementation() override;
42	// End EquipmentActorInterface
43
44	//是否是副手武器。
45	UFUNCTION(BlueprintCallable, BlueprintPure, Category="GIS|EquipmentActor")
46	virtual bool IsOffhandWeapon() const;
47	/**
48	 * Get correct weapon settings based on if offhand / primary weapon.
49	 * @return The actual weapon settings.
50	 */
51	UFUNCTION(BlueprintCallable, BlueprintPure, Category="GIS|EquipmentActor")
52	virtual const UGGF_ItemFragment_WeaponSettings* GetWeaponSettings() const;
53
54#pragma region Traces
55
56	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponTrace", meta=(BlueprintProtected))
57	void AddWeaponTraces();
58
59	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponTrace", meta=(BlueprintProtected))
60	void RemoveWeaponTraces();
61
62	/**
63	 * Allow you to customize the source object used for weapon traces.
64	 * 允许你自定义用于武器碰撞检测的源对象。
65	 * @note The source object is the weapon itself by default. 默认是武器本身就是源对象.
66	 * @return The object used as source object for weapon trace.
67	 */
68	UFUNCTION(BlueprintNativeEvent, Category="GCS|WeaponTrace", meta=(BlueprintProtected))
69	UObject* GetSourceObjectForTrace();
70	virtual UObject* GetSourceObjectForTrace_Implementation();
71
72	/**
73	 * Allow you to customize the source component used for weapon traces.
74	 * 允许你自定义用于武器碰撞检测的源组件。
75	 * @note The source component is the weapon primitive component by default. 默认是武器的PrimitiveComponent就是源组件.
76	 * @return The component used as source component for weapon trace.
77	 */
78	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponTrace", meta=(BlueprintProtected))
79	UPrimitiveComponent* GetSourceComponentForTrace(const FGameplayTag& TraceTag) const;
80	virtual UPrimitiveComponent* GetSourceComponentForTrace_Implementation(const FGameplayTag& TraceTag) const;
81
82	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponTrace")
83	void OnWeaponActiveStateChanged(bool bNewActiveState);
84
85	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponTrace")
86	void OnWeaponTrailStateChanged(bool bEnable);
87
88	UFUNCTION()
89	void OnAnyTraceHit(const FGCS_TraceHandle& TraceHandle, const FHitResult& HitResult);
90
91	/**
92	 * Handles weapon trace hits.
93	 * 处理武器碰撞命中。
94	 * @param TraceHandle The collision trace instance. 碰撞检测实例。
95	 * @param HitResult The hit result. 命中结果。
96	 */
97	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponTrace")
98	void OnWeaponTraceHit(const FGCS_TraceHandle& TraceHandle, const FHitResult& HitResult);
99
100	UFUNCTION()
101	void OnAnyTraceStateChanged(const FGCS_TraceHandle& TraceHandle, bool NewState);
102
103	/**
104	 * Handles trace state changes.
105	 * 处理碰撞状态变化。
106	 * @param TraceHandle The collision trace instance. 碰撞检测实例。
107	 * @param NewState The new state. 新状态。
108	 */
109	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponTrace")
110	void OnWeaponTraceStateChanged(const FGCS_TraceHandle& TraceHandle, bool NewState);
111
112	/**
113	 * Traces associated with this weapon.
114	 * 与该武器关联的碰撞检测.
115	 */
116	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Transient, Category="EquipmentInstance")
117	TArray<FGCS_TraceHandle> TraceHandles;
118#pragma endregion
119
120#pragma region Visuals
121
122protected:
123	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponVisual", meta=(BlueprintProtected))
124	void ApplyWeaponVisual();
125	virtual void ApplyWeaponVisual_Implementation();
126
127	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|WeaponVisual", meta=(BlueprintProtected))
128	void ResetWeaponVisual();
129	virtual void ResetWeaponVisual_Implementation();
130
131#pragma endregion
132
133#pragma region Movements
134
135	UFUNCTION(BlueprintCallable, BlueprintNativeEvent, Category="GCS|Weapon", meta=(BlueprintProtected))
136	void RefreshMovementSet();
137	virtual void RefreshMovementSet_Implementation();
138
139#pragma endregion
140
141protected:
142	//The equipment instance who created this equipment actor.
143	UPROPERTY(VisibleAnywhere, Transient, Category="WeaponState")
144	TObjectPtr<UGGF_WeaponInstance> SourceEquipment{nullptr};
145};
146

cpp

1// Copyright 2025 https://yuewu.dev/en  All Rights Reserved.
2
3
4#include "Inventory/GGF_Weapon.h"
5#include "AbilitySystemBlueprintLibrary.h"
6#include "Components/PrimitiveComponent.h"
7#include "GameFramework/Pawn.h"
8#include "GCS_LogChannels.h"
9#include "GIS_EquipmentInstance.h"
10#include "GIS_LogChannels.h"
11#include "GMS_MovementSystemComponent.h"
12#include "Collision/GCS_TraceSystemComponent.h"
13#include "Components/PoseableMeshComponent.h"
14#include "Inventory/GGF_ItemFragments.h"
15#include "Inventory/GGF_WeaponInstance.h"
16
17
18AGGF_Weapon::AGGF_Weapon()
19{
20	PrimaryActorTick.bCanEverTick = false;
21	bReplicates = true;
22	bOnlyRelevantToOwner = true;
23}
24
25UGIS_EquipmentInstance* AGGF_Weapon::GetSourceEquipment_Implementation() const
26{
27	return SourceEquipment;
28}
29
30UPrimitiveComponent* AGGF_Weapon::GetPrimitiveComponent_Implementation() const
31{
32	GCS_CLOG(Error, "Doesn't implement this function to get properly PrimitiveComponent For Weapon.")
33	return nullptr;
34}
35
36void AGGF_Weapon::ReceiveSourceEquipment_Implementation(UGIS_EquipmentInstance* NewEquipmentInstance, int32 Idx)
37{
38	if (!IsValid(NewEquipmentInstance))
39	{
40		GIS_CLOG(Error, "received invalid equipment")
41		return;
42	}
43
44	if (UGGF_WeaponInstance* WeaponInstance = Cast<UGGF_WeaponInstance>(NewEquipmentInstance))
45	{
46		SourceEquipment = WeaponInstance;
47	}
48	else
49	{
50		GIS_CLOG(Error, "failed to received source equipment, expecting type of %s, got %s", *UGGF_WeaponInstance::StaticClass()->GetName(), *GetNameSafe(NewEquipmentInstance->GetClass()))
51	}
52}
53
54void AGGF_Weapon::ReceiveEquipmentBeginPlay_Implementation()
55{
56	if (IsValid(SourceEquipment))
57	{
58		SourceEquipment->OnActiveStateChangedEvent.AddDynamic(this, &ThisClass::OnWeaponActiveStateChanged);;
59		SourceEquipment->OnTrailStateChangedEvent.AddDynamic(this, &ThisClass::OnWeaponTrailStateChanged);
60	}
61	else
62	{
63		GIS_CLOG(Error, "Missing source equipment!")
64	}
65}
66
67void AGGF_Weapon::ReceiveEquipmentEndPlay_Implementation()
68{
69	if (IsValid(SourceEquipment))
70	{
71		SourceEquipment->OnActiveStateChangedEvent.RemoveDynamic(this, &ThisClass::OnWeaponActiveStateChanged);
72		SourceEquipment->OnTrailStateChangedEvent.RemoveDynamic(this, &ThisClass::OnWeaponTrailStateChanged);
73	}
74}
75
76bool AGGF_Weapon::IsOffhandWeapon() const
77{
78	if (IsValid(SourceEquipment))
79	{
80		if (int32 Idx = SourceEquipment->GetIndexOfEquipmentActor(this))
81		{
82			// the second equipment actor are considered as Offhand Weapon.
83			return Idx == 1;
84		}
85	}
86	return false;
87}
88
89const UGGF_ItemFragment_WeaponSettings* AGGF_Weapon::GetWeaponSettings() const
90{
91	if (IsOffhandWeapon())
92	{
93		return SourceEquipment->GetOffhandWeaponSettings();
94	}
95	return SourceEquipment->GetWeaponSettings();
96}
97
98void AGGF_Weapon::AddWeaponTraces_Implementation()
99{
100	APawn* Pawn = Cast<APawn>(GetOwner());
101	if (!IsValid(Pawn))
102	{
103		GCS_OWNED_CLOG(this, Warning, "invalid weapon owner!")
104		return;
105	}
106	UGCS_TraceSystemComponent* TSC = UGCS_TraceSystemComponent::GetTraceSystemComponent(Pawn);
107	if (!IsValid(TSC))
108	{
109		GCS_OWNED_CLOG(Pawn, Warning, "missing trace system on weapon owner(%s)!", *GetNameSafe(Pawn))
110		return;
111	}
112
113	TraceHandles.Reset();
114	for (const FGCS_TraceDefinition& TraceDefinition : GetWeaponSettings()->TraceDefinitions)
115	{
116		UPrimitiveComponent* Primitive = GetSourceComponentForTrace(TraceDefinition.TraceTag);
117		if (Primitive == nullptr)
118		{
119			GCS_OWNED_CLOG(this, Error, "No SourceComponent provided for trace:%s,check your GetSourceComponentForTrace implementation.", *TraceDefinition.TraceTag.ToString());
120			continue;
121		}
122		FGCS_TraceHandle Handle = TSC->AddTrace(TraceDefinition, Primitive, GetSourceObjectForTrace());
123		if (Handle.IsValidHandle())
124		{
125			TraceHandles.Add(Handle);
126		}
127	}
128	TSC->OnTraceHitEvent.AddDynamic(this, &ThisClass::OnAnyTraceHit);
129	TSC->OnTraceStateChangedEvent.AddDynamic(this, &ThisClass::OnAnyTraceStateChanged);
130}
131
132void AGGF_Weapon::RemoveWeaponTraces_Implementation()
133{
134	APawn* Pawn = Cast<APawn>(GetOwner());
135	if (!IsValid(Pawn))
136	{
137		GCS_OWNED_CLOG(this, Warning, "invalid weapon owner!")
138		return;
139	}
140	if (UGCS_TraceSystemComponent* TSC = UGCS_TraceSystemComponent::GetTraceSystemComponent(Pawn))
141	{
142		TSC->OnTraceHitEvent.RemoveDynamic(this, &ThisClass::OnAnyTraceHit);
143		TSC->OnTraceStateChangedEvent.RemoveDynamic(this, &ThisClass::OnAnyTraceStateChanged);
144		TSC->RemoveTraces(TraceHandles);
145	}
146}
147
148UObject* AGGF_Weapon::GetSourceObjectForTrace_Implementation()
149{
150	return SourceEquipment;
151}
152
153UPrimitiveComponent* AGGF_Weapon::GetSourceComponentForTrace_Implementation(const FGameplayTag& TraceTag) const
154{
155	GCS_CLOG(Error, "Doesn't implement this function to get properly SourceComponent For Trace.")
156	return nullptr;
157}
158
159void AGGF_Weapon::OnAnyTraceHit(const FGCS_TraceHandle& TraceHandle, const FHitResult& HitResult)
160{
161	if (TraceHandles.Contains(TraceHandle))
162	{
163		OnWeaponTraceHit(TraceHandle, HitResult);
164	}
165}
166
167void AGGF_Weapon::OnAnyTraceStateChanged(const FGCS_TraceHandle& TraceHandle, bool NewState)
168{
169	if (TraceHandles.Contains(TraceHandle))
170	{
171		OnWeaponTraceStateChanged(TraceHandle, NewState);
172	}
173}
174
175void AGGF_Weapon::OnWeaponActiveStateChanged_Implementation(bool bNewActiveState)
176{
177	GCS_CLOG(VeryVerbose, "weapon active state changed:%s", bNewActiveState?TEXT("True"):TEXT("False"))
178}
179
180void AGGF_Weapon::OnWeaponTrailStateChanged_Implementation(bool bEnable)
181{
182	GCS_CLOG(VeryVerbose, "weapon trail state changed:%s", bEnable?TEXT("True"):TEXT("False"))
183}
184
185void AGGF_Weapon::OnWeaponTraceHit_Implementation(const FGCS_TraceHandle& TraceHandle, const FHitResult& HitResult)
186{
187	GCS_CLOG(VeryVerbose, "weapon hit %s", *HitResult.ToString())
188}
189
190void AGGF_Weapon::OnWeaponTraceStateChanged_Implementation(const FGCS_TraceHandle& TraceHandle, bool NewState)
191{
192}
193
194void AGGF_Weapon::ApplyWeaponVisual_Implementation()
195{
196	UPrimitiveComponent* Primitive = Execute_GetPrimitiveComponent(this);
197	if (!IsValid(Primitive))
198	{
199		GCS_CLOG(Error, "Missing primitive component!")
200		return;
201	}
202	if (!IsValid(SourceEquipment))
203	{
204		GCS_CLOG(Error, "Missing weapon settings!")
205		return;
206	}
207	if (Primitive->IsA<USkeletalMeshComponent>())
208	{
209		CastChecked<USkeletalMeshComponent>(Primitive)->SetSkeletalMeshAsset(GetWeaponSettings()->SkeletalMesh);
210	}
211	else if (Primitive->IsA<UStaticMeshComponent>())
212	{
213		CastChecked<UStaticMeshComponent>(Primitive)->SetStaticMesh(GetWeaponSettings()->StaticMesh);
214	}
215	else if (Primitive->IsA<UPoseableMeshComponent>())
216	{
217		CastChecked<UPoseableMeshComponent>(Primitive)->SetSkinnedAsset(GetWeaponSettings()->SkeletalMesh);
218	}
219}
220
221void AGGF_Weapon::ResetWeaponVisual_Implementation()
222{
223	UPrimitiveComponent* Primitive = Execute_GetPrimitiveComponent(this);
224	if (!IsValid(Primitive))
225	{
226		GCS_CLOG(Error, "Missing primitive component!")
227		return;
228	}
229	if (Primitive->IsA<USkeletalMeshComponent>())
230	{
231		CastChecked<USkeletalMeshComponent>(Primitive)->SetSkeletalMeshAsset(nullptr);
232	}
233	else if (Primitive->IsA<UStaticMeshComponent>())
234	{
235		CastChecked<UStaticMeshComponent>(Primitive)->SetStaticMesh(nullptr);
236	}
237	else if (Primitive->IsA<UPoseableMeshComponent>())
238	{
239		CastChecked<UPoseableMeshComponent>(Primitive)->SetSkinnedAsset(nullptr);
240	}
241}
242
243void AGGF_Weapon::RefreshMovementSet_Implementation()
244{
245	if (APawn* OwningPawn = IGIS_EquipmentInterface::Execute_GetOwningPawn(SourceEquipment))
246	{
247		if (OwningPawn->HasAuthority() && GetWeaponSettings())
248		{
249			if (IGIS_EquipmentInterface::Execute_IsEquipmentActive(SourceEquipment))
250			{
251				if (auto MSC = UGMS_MovementSystemComponent::GetMovementSystemComponent(OwningPawn))
252				{
253					MSC->SetMovementDefinition(GetWeaponSettings()->MovementDefinition);
254				}
255			}
256		}
257	}
258}
259

TODO...
